ANPING FUHUA WIRE MESH MAKING CO.,LTD
| Zahlungsart: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Minimum der Bestellmenge: | 1 Roll |
| Transport: | Ocean,Land,Air |
| Hafen: | XINGANG PORT |
Material: Stahldraht, EDELSTAHLDRAHT, Eisendraht, Galvanized Iron Wire
Oberflächenbehandlung: PVC beschichtet, Verzinkt
Spezies: Stacheldrahtspule
Klingentyp: Einzelrasierer, Kreuz Rasiermesser
Model NO.: Bto-22
Barbed Distance: 42mm
Barb Length: 30mm
Coil Outside Diameter: 700mm
Color: Silver
450mm,500mm,600mm,750mm,900mm: 56loops
Transport Package: Wooden Case, Gunny Bag
Specification: BTO18 BTO22, BTO28, CBT65
Trademark: RUILI
Origin: Anping, Hebei
HS Code: 73130000
Production Capacity: 100ton/Month
Twist Method: Single Twist
Application: Protecting Mesh, Fence Mesh
Finish: Hot Dipped Galvanized
Razor Barbed Type: Cross Razor
Wire Gauge: 2.5mm
| Verkaufseinheiten | : | Roll |

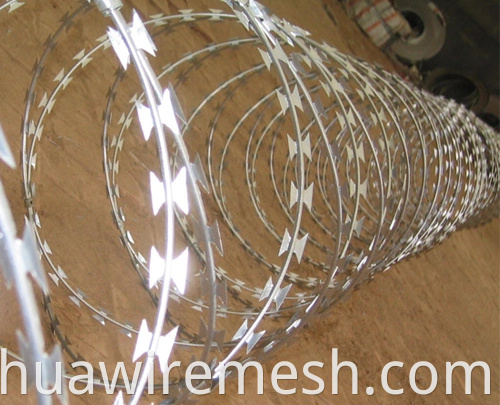

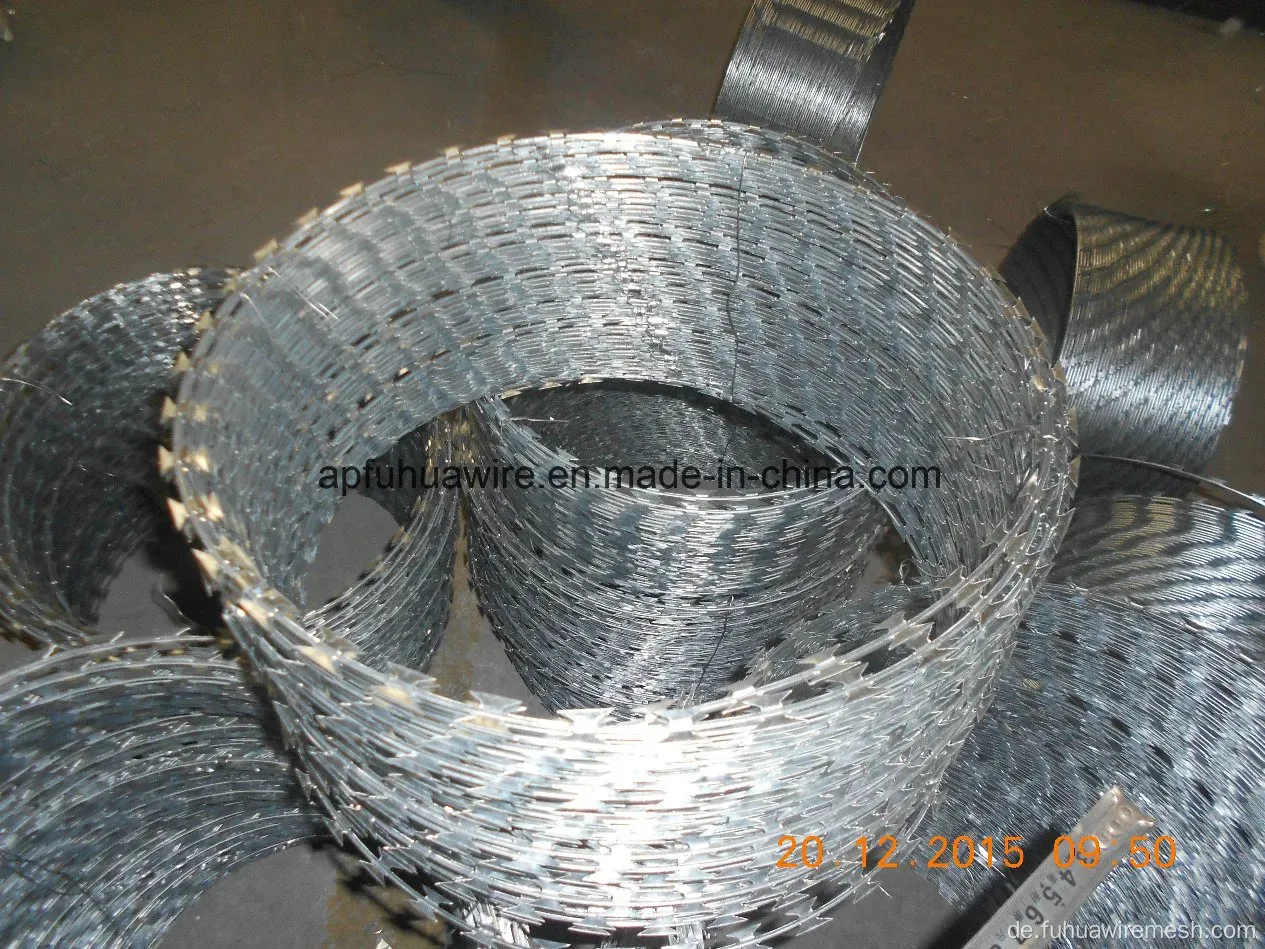

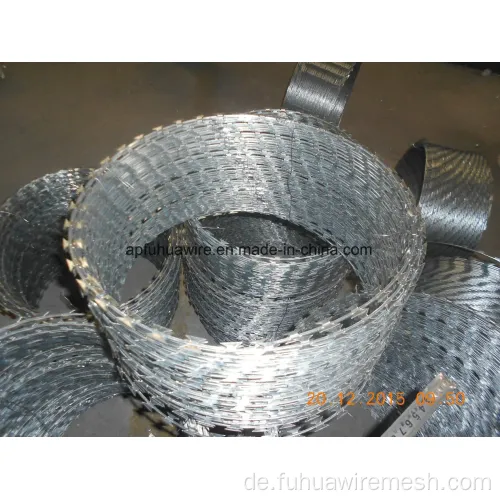

Stacheldrahtzaun
Anping Fuhua Wire Mesh Making Co., Ltd, spezialisiert auf den Export von Drahtgitter und Sicherheitsprodukten durch die Welt. Unser Unternehmen wurde 1988 gegründet und ist in den letzten Jahren dramatisch gewachsen, ist zu einem der Top -Wire -Mesh -Exporteure in der Provinz Hebei geworden.
Materialien: Heiß getippt verzinkt, elektro verzinkt, Edelstahl, Eisendraht, PVC-beschichtete Draht
Typ: CBT (Konzertina -Stachelband) und BTO (Hindernis des Stachelbands)
Typ: BTO-10, BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65 usw.
Außerhalb von 450 mm, 500 mm, 700 mm, 600 mm, 980 mm, 1000 mm usw., wie Kunden anfordern
[Matrial]
Elektro verzinkter Kerndraht und Klinge
Heiß getippte verzinkte Kerndraht und Klinge
Stahlkerndraht und Klinge
PVC beschichtetes Kerndraht und Klinge
Heiß getippte verzinkte Kerndraht+Edelstahlklinge
Rasiermessertyp: einzelner Typ, Kreuzungstyp (3 oder 5clp pro Kreis)
Stacheldrahtzaun Rasierer
Heiß getippte, verzinkte Zinkbeschichtungsqualität:
| Outside diameter | NO. of loop | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8m | CBT-60,65 | Single coil |
| 500mm | 41 | 10m | CBT-60,65 | Single coil |
| 700mm | 41 | 10m | CBT-60,65 | Single coil |
| 960mm | 53 | 13m | CBT-60,65 | Single coil |
| 500mm | 102 | 16m | BTO-10,15,22,30 | Cross type |
| 600mm | 86 | 14m | BTO-10,15,22,30 | Cross type |
| 700mm | 72 | 12m | BTO-10,15,22,30 | Cross type |
| 800mm | 64 | 10m | BTO-10,15,22,30 | Cross type |
| 960mm | 52 | 9m | BTO-10,15,22,30 | Cross type |
| Note: The blade types and specifications can be customized according to the customers' actual equirements. BTO-10 and BTO-22 are normally used in production of cross type. | ||||
| High | Standard cover length | Weight |
| 500mm(20inch) | 15M(50ft) | 9.5kg(21lbs) |
| 700mm(28inch) | 15M(50ft) | 13kg(29lbs) |
| 900mm(36inch) | 15M(50ft) | 14.5kg(32lbs) |
| Hole Size | Hole Style | Width | Length | Blade style |
| 100mmX100mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22.30 CBT-60.65 |
| 100mmX150mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
| 100mmX200mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
| 150mmX300mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
| Notes: Any sizes can be customized by customer's request. | ||||
Kabel:
Grad A: Draht 60-80 g/m2 Klinge: 60-80 g/m2
Grad B: Draht 80-120G/M2 Blade: 100-150 g/m2
Grad C: Draht 160-200G/M2 Blade: 230-270 g/m2
