ANPING FUHUA WIRE MESH MAKING CO.,LTD
| Zahlungsart: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Minimum der Bestellmenge: | 1 Piece/Pieces |
| Transport: | Ocean,Land,Air |
Model NO.: Flat Wrap Razor Wire
Barbed Distance: 35mm
Barb Length: 22mm
Coil Outside Diameter: 500mm
Color: Zinc
Type: Bto-10 or Bto-22
Coil: Flat Wrap Razor Wire
Installation Coverage: 10m-15m
Customizable: Yes
Transport Package: Bundles
Specification: 500mm
Trademark: fuhua
Origin: China
HS Code: 73130000
Production Capacity: 5000000
Material: Galvanized Iron Wire
Twist Method: Flat Wrap
Application: Protecting Mesh, Fence Mesh, Perimeter Protection Security Fencing Wire
Finish: Hot Dipped Galvanized
Razor Barbed Type: Flat Wrap Razor Wire
Wire Gauge: 2.5mm
| Verkaufseinheiten | : | Piece/Pieces |
| Product: | Flat Wrap Razor Wire |
| Type: | BTO-10 or BTO-22 |
| Style: | Flat Wrap Razor Wire |
| Diameter: | 450mm, 500mm, 600mm, etc |
| Loops: | 10-15m |
| Length: | 10-15 metres |
| Material: | Hot Dipped Galvanized or Stainless Steel |
| Packaging: | Bundle or Wooden Pallet |

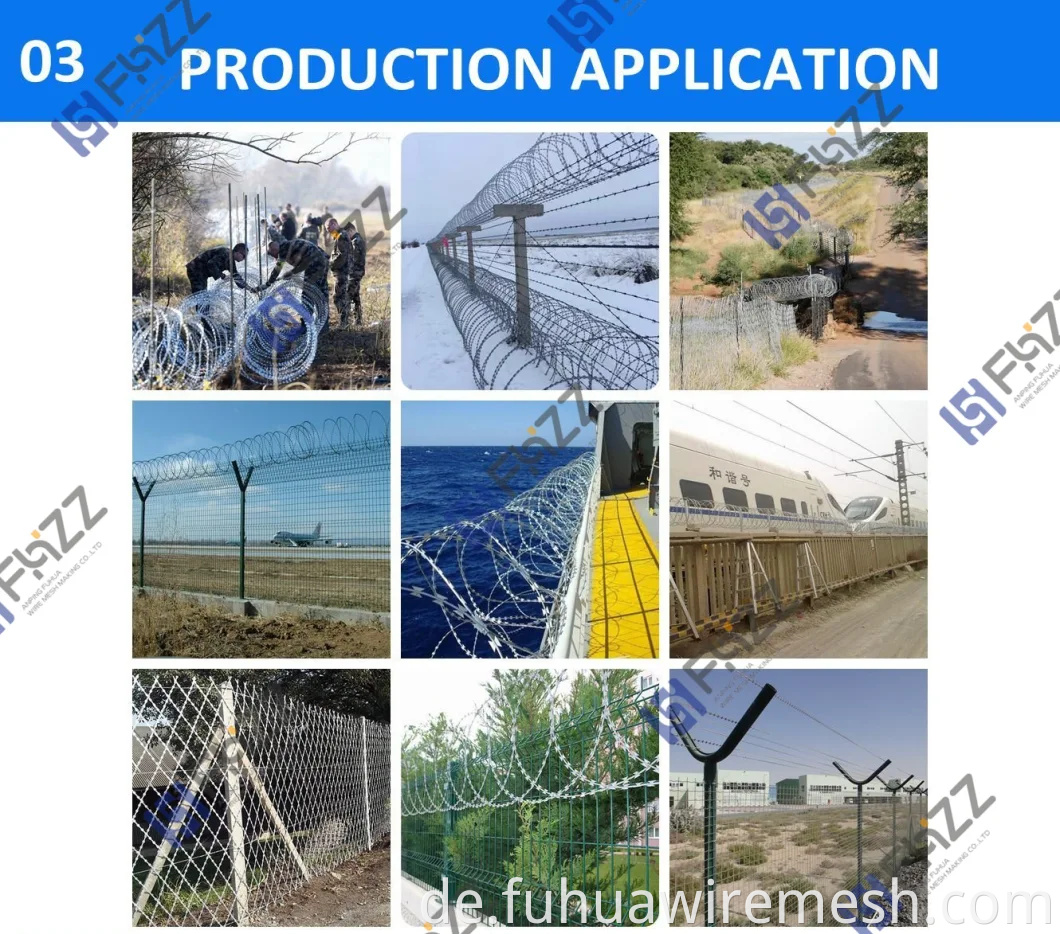

| Applications: | High Security Perimeter Fencing Wire |
| Customizable: | Yes |
| Origin: | Made in China |
| Model | Thickness | Wire Dia | Barb Length | Barbed Width |
Barb Spacing |
| BTO-10 | 0.5 ± 0.05 mm | 2.5 ± 0.1mm | 10 ± 1mm | 13 ± 1mm | 26 ± 1mm |
| BTO-12 | 0.5 ± 0.05 mm | 2.5 ± 0.1mm | 12 ± 1mm | 15 ± 1mm | 26 ± 1mm |
| BTO-18 | 0.5 ± 0.05 mm | 2.5 ± 0.1mm | 18 ± 1mm | 15 ± 1mm | 34 ± 1mm |
| BTO-22 | 0.5 ± 0.05 mm | 2.5 ± 0.1mm | 22 ± 1mm | 15 ± 1mm | 34 ± 1mm |
| BTO-28 | 0.5 ± 0.05 mm | 2.5 ± 0.1mm | 28 ± 1mm | 15 ± 1mm | 53 ± 1mm |
| BTO-30 | 0.5 ± 0.05 mm | 2.5 ± 0.1mm | 30 ± 1mm | 21 ± 1mm | 54 ± 1mm |
| CBT-60 | 0.6 ± 0.05 mm | 2.5 ± 0.1mm | 60 ± 2mm | 32 ± 1mm | 102 ± 1mm |
| CBT-65 | 0.6 ± 0.05 mm | 2.5 ± 0.1mm | 65 ± 2mm | 21 ± 1mm | 102 ± 1mm |
|
We can also design and make the corresponding machines and equipments to manufacture your private customized razor wire types. |
|||||
| Outside Diameter | No. of Loops | The Utmost Effective Length | Type | Notes |
| 450 mm | 33 | 7 - 8 M | CBT - 60.65 | Single coil |
| 500 mm | 56 | 12 - 13 M | CBT - 60.65 | Single coil |
| 700 mm | 56 | 13 - 14 M | CBT - 60.65 | Single coil |
| 960 mm | 56 | 14 - 15 M | CBT - 60.65 | Single coil |
| 450 mm | 56 | 8 - 9 M (3 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 500 mm | 56 | 9 - 10 M (3 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 600 mm | 56 | 10 - 11 M (3 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 600 mm | 56 | 8 - 10 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 700 mm | 56 | 10 - 12 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 800 mm | 56 | 11 - 13 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 900 mm | 56 | 12 - 14 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 960 mm | 56 | 13 - 15 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 980 mm | 56 | 14 - 16 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
|
We can manufacture more specifications of razor wire products according to the actual needs of customers. |
||||
