ANPING FUHUA WIRE MESH MAKING CO.,LTD
| Zahlungsart: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Minimum der Bestellmenge: | 1 Roll |
| Transport: | Ocean,Land |
| Hafen: | TIANJIN |
Specification: BTO-28
Trademark: RUILI
Origin: Hebei, China
HS-Code: 7313000
Produktionskapazität: 50 Tons /Day
Hole Shape: Round
Blade Thickness: 0.5+/-0.5mm
Barb Width: 15+/-1mm
Feature: Rot Proof, Waterproof
Zertifizierung: Iso9001

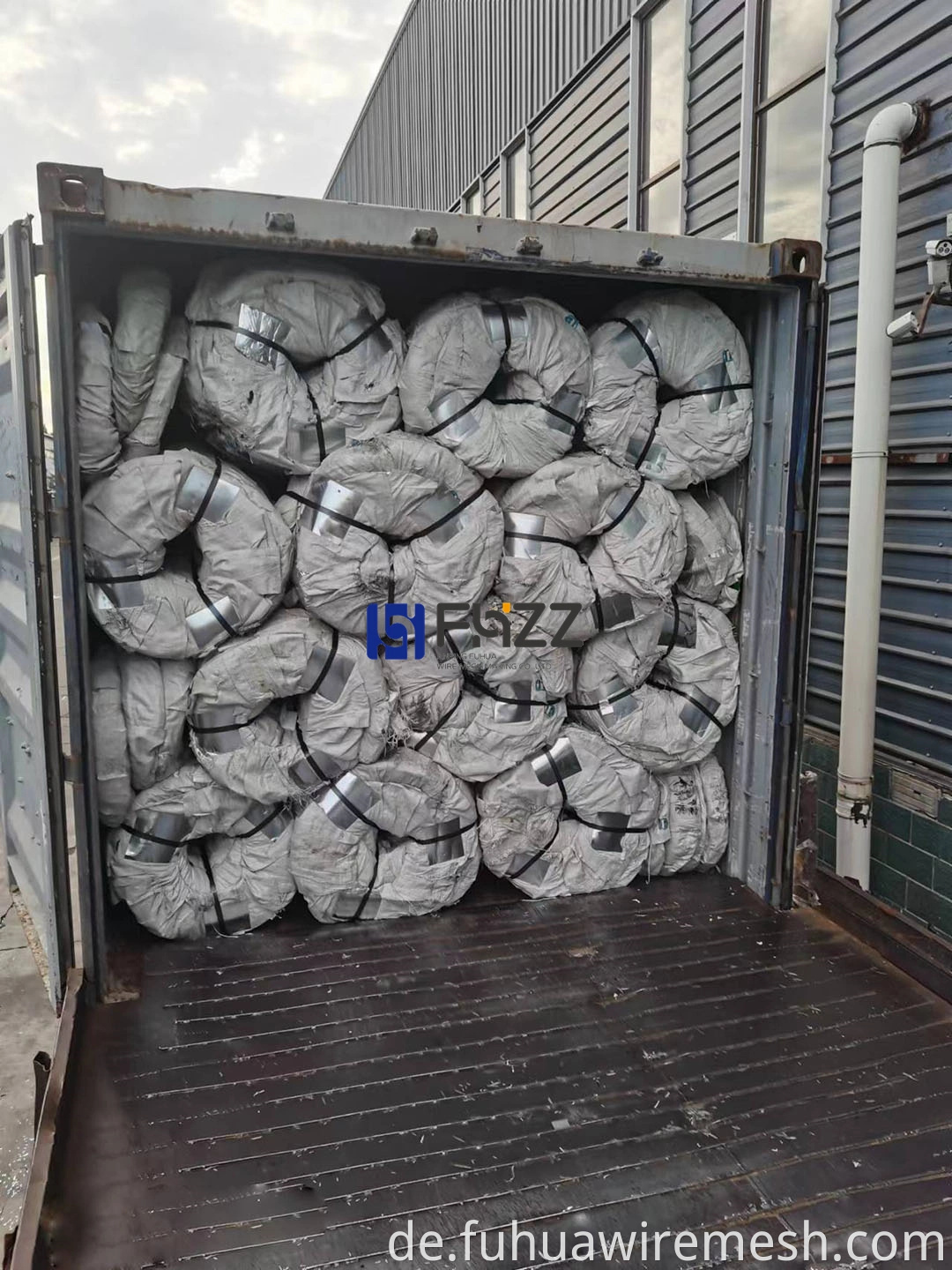

Transport Package: Bulk, Plastic Weaving Bags
| Verkaufseinheiten | : | Roll |
The file is encrypted. Please fill in the following information to continue accessing it
| Model | Thickness | Wire dia | Barb Length | Barbed Width |
Barb Spacing |
| BTO-10 | 0.5+/-0.05 mm | 2.5+/-0.1mm | 10+/-1mm | 13+/-1mm | 26+/-1mm |
| BTO-12 | 0.5+/-0.05 mm | 2.5+/-0.1mm | 12+/-1mm | 15+/-1mm | 26+/-1mm |
| BTO-18 | 0.5+/-0.05 mm | 2.5+/-0.1mm | 18+/-1mm | 15+/-1mm | 38+/-1mm |
| BTO-22 | 0.5+/-0.05 mm | 2.5+/-0.1mm | 22+/-1mm | 15+/-1mm | 38+/-1mm |
| BTO-28 | 0.5+/-0.05 mm | 2.5+/-0.1mm | 28+/-1mm | 15+/-1mm | 53+/-1mm |
| BTO-30 | 0.5+/-0.05 mm | 2.5+/-0.1mm | 30+/-1mm | 21+/-1mm | 54+/-1mm |
| CBT-60 | 0.6+/-0.05 mm | 2.5+/-0.1mm | 60+/-2mm | 32+/-1mm | 102+/-1mm |
| CBT-65 | 0.3+/-0.05 mm | 2.5+/-0.1mm | 65+/-2mm | 21+/-1mm | 102+/-1mm |
| Outside diameter | No. of loops | The utmost effective length | Type | Notes |
| 450 mm | 33 | 7 - 8 M | CBT 60.65 | Single coil |
| 500 mm | 56 | 12 - 13 M | CBT 60.65 | Single coil |
| 700 mm | 56 | 13 - 14 M | CBT 60.65 | Single coil |
| 960 mm | 56 | 14 - 15 M | CBT 60.65 | Single coil |
| 450 mm | 56 | 8 - 9 M (3 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 500 mm | 56 | 9 - 10 M (3 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 600 mm | 56 | 10 - 11 M (3 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 600 mm | 56 | 8 - 10 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 700 mm | 56 | 10 - 12 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 800 mm | 56 | 11 - 13 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 900 mm | 56 | 12 - 14 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 960 mm | 56 | 13 - 15 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 980 mm | 56 | 14 - 16 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
