ANPING FUHUA WIRE MESH MAKING CO.,LTD
| Zahlungsart: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Minimum der Bestellmenge: | 1 Piece/Pieces |
| Transport: | Ocean,Land,Air |
| Hafen: | TIANJIN PORT |
Bearing Bar Pitch: 12.5, 15, 20, 23.85, 25, 30, 30
Twisted Cross Bar Pitch: 38.1, 50, 60, 76, 80, 100, 101.6, 120mm,
Surface Treatment: Black, Self Colour, Hot DIP Galvanized, Painted
Color: Silver,Black
Transport Package: by Pallet or According to The Buyer′s Requirement
Trademark: fuhua or the buyer′s mark
Origin: Anping, China
HS Code: 7308900000
Production Capacity: 1000 Rolls/Day
Certification: CCC, ISO
Application: Steel Structure Walkway, Foot Pedal, Drain Cover
Shape: Flat Shape
Manufacturing Method: Machine Welding
Material: Carbon Steel
Bearing Bar: 25X3, 25X4, 25X4.5, 25X5, 30X3, 30X4, 30X4.5, 30X5
| Verkaufseinheiten | : | Piece/Pieces |

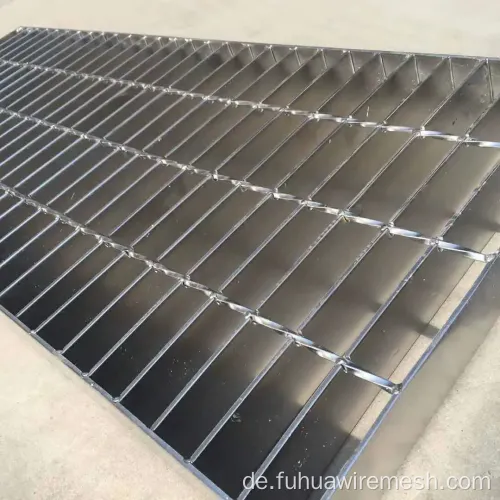

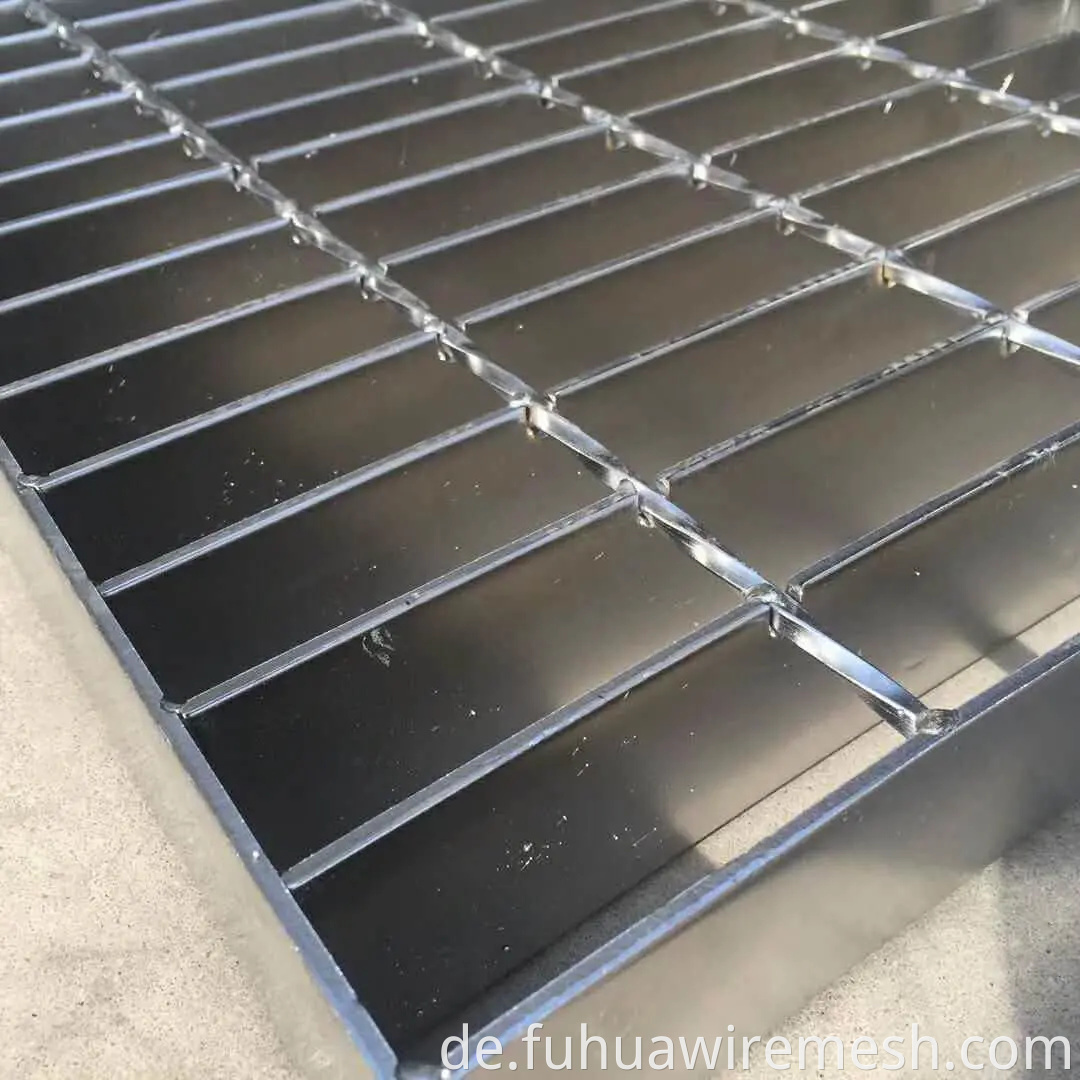

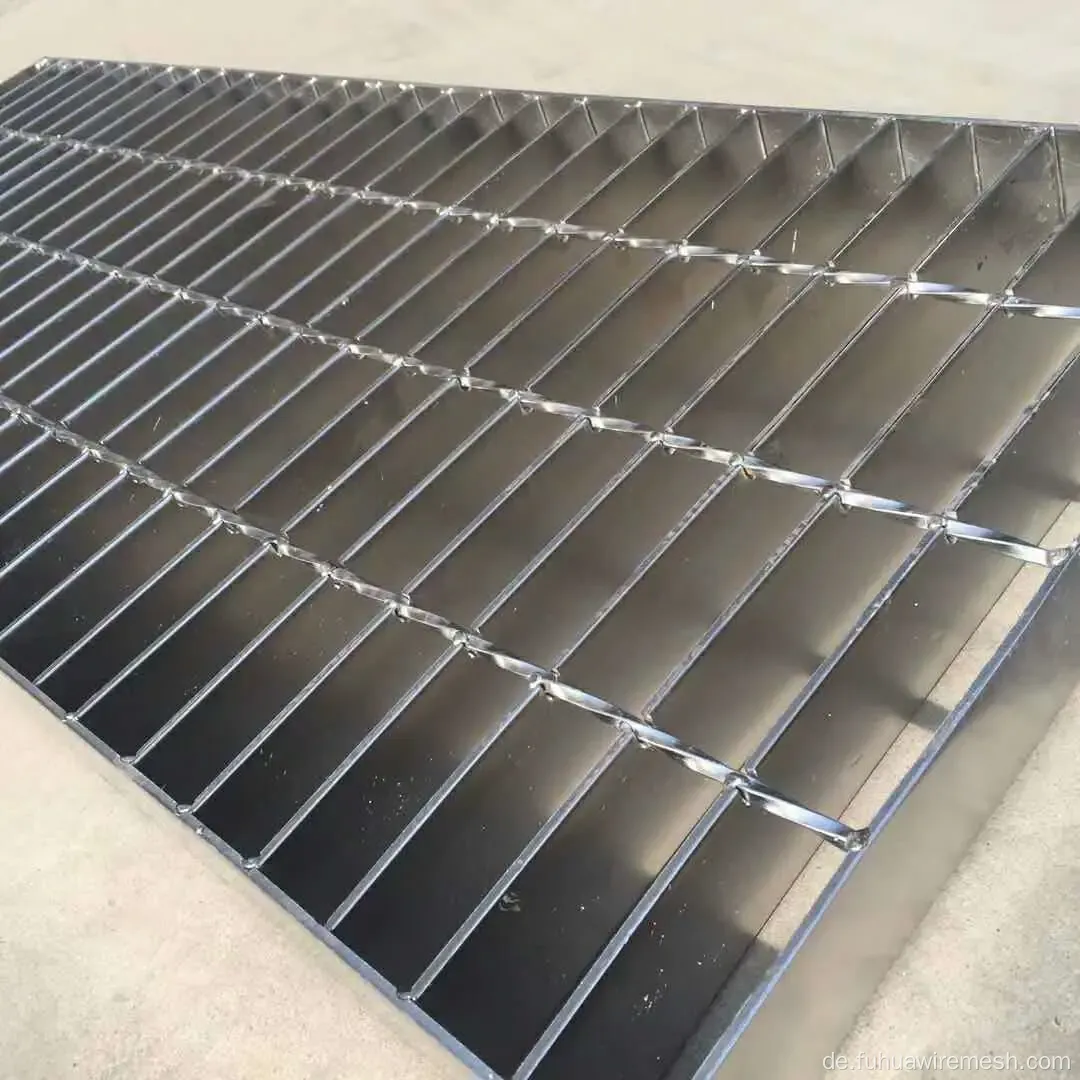

Stahlgitter (Schlichtes Stahlgitter flacher Stahlgitter & gezacktes Stahlgitter / Zahnform Stahlgitter)
1) Lagerstange (Laststange) (mm): 20 x 3 bis 100 x 9; Die Spezifikation von "I-Abschnitt" beträgt 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5, x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4 usw.
2) Lagerstabstab (Mitte zu Mitte): 12,5 bis 100 mm usw., sind ebenfalls nach Anforderung des Kunden und 30, 40, 60 mm empfohlen, America Standard ist verfügbar
3) Cross Bar -Tonhöhe (Mitte zu Mitte): Von 18.5 bis 101,6 mm usw., ebenfalls nach Anforderung des Kunden und 50 mm empfohlen werden, ist America Standard verfügbar.
4) Stahlgittermaterial: Q235 Stahl- oder Edelstahl -Gitter.
5) Behandlung mit Stahlgitterflächen: Unbehandelt, Malerei oder heiß getauchte Verzierung
6) Qualitätsstandard:
Stahlgitterstandard: China YB/T4001-1998
America ANSI/NAAMM (MBG531-88)
Großbritannien BS4592-1987
Australien AS1657-1992
Stahlstandard: China GB700-88 / ASTM (A36) / BS4306 (43A)
Heißdip-Galvanisierungsstandard: China GB / T13912-92 / ASTM (A123) / BS729
7) Anwendung von Stahlgraten: Boden; Laufsteg; Mezzanines/Decking; Treppenmodelle; Zaun; Gewölbebehälterboden; Rampe; Dock/Lagerhaus; alle Arten von Grabenabdeckungen; Fenster- und Maschinen -Safe -Wachen; Waschständer; Lüftungsbildschirm; Lagerregal; ; HABE -Decke; Entwässerungsgrubenabdeckung usw.
Spezifikationen
(1) MAX -Panelgröße für 1000x5800mm erhältlich
| Bearing bar pitch | Cross bar pitch | load steel size ( Width ×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross bar pitch | load steel size (Width ×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
.
| Bearing bar type | Flat bar | I bar | Serrated bar | |
| Cross bar type | Twisted bar | Round bar | flat bar | |
| Production process | welded | Pressure locked | ||
| Surface treatment | Self-colour | Galvanized | painted | |
| application | Platform | walkway&floor | Trench cover | Steel stair treads |
| Suspended ceiling | Barrier fence |
| Steel Grating Standard | |||
| Steel Grating Standard | Steel Standard | Galvanizing Standard | |
| China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T13912-2002 |
| USA Standard | ANSI/NAAMM (MBG531) | ASTM (A36) | ASTM (A123) |
| U.K. Standard | BS4592 | BS4360 (43A) | BS729 |
| Australia Standard | AS1657 | AS3679 | AS1650 |
| Deutsche Standard | DIN24537 | DIN17100-80 | DIN50976 |
